Flexible Retractable Barrier
Flexible Retractable Barrier
Ideal for platform protection
| Component | Specification / Description |
| Roller Shutter | Constructed with 3 strips of 100mm wide, >3.5mm thick polyester fabric, featuring top and bottom reflective strips. Single strip maximum tear resistance >90 kN. |
Left/Right Main Frame | Made of welded steel plates with powder coating surface treatment. Passes 500-hour neutral salt spray test (no rust). |
Locking Mechanism | Utilizes upper/lower index pins + gear disc locking to ensure effective resistance against external forces. |

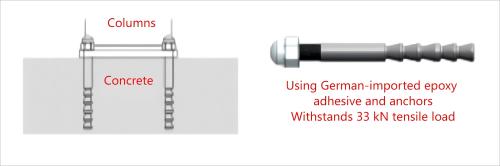

Ground Connection | Fixed with inverted cone chemical anchors. Surface treated with Dacromet coating, passes 1000-hour neutral salt spray test (no rust). |
| Color | Orange RAL 1003 |
| Model | SSHL-A |

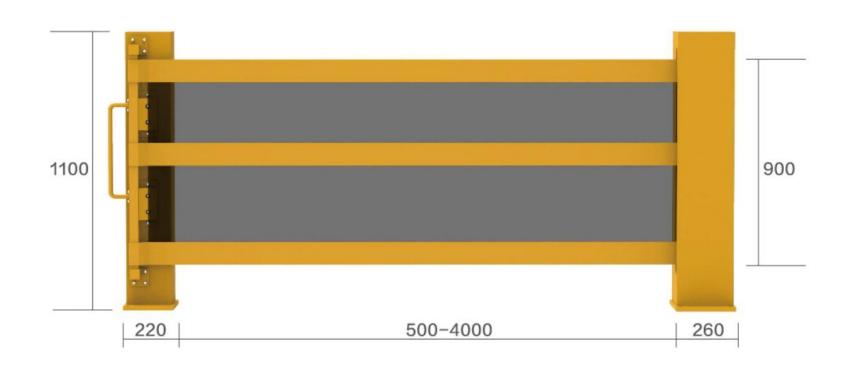

| Height | 1100 mm |

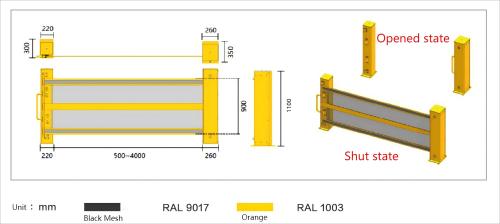

| Width | 500-4000 mm |
| Operation | Manual |
| Capacity | 50 kN |

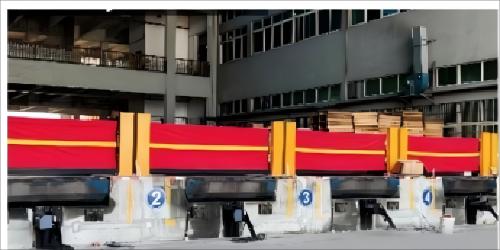

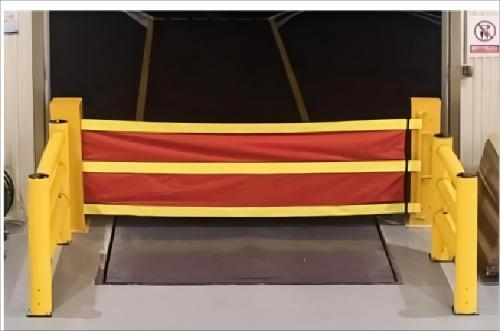

Application Scenario: Ideal for platform edge protection to prevent people, vehicles, or objects from falling off the platform.
Parameters
*Column box：Height：1200 mm, material：steel，base size:200X200mm
*Selectable Range: Guardrail opening width from 3000 to 5000 mm
*Flexible Barrier Material: Soft curtain made of nylon-polyester straps, quantity: 3 straps, dimensions: W100 mm x D3 mm (color: yellow)
The connecting material in the middle is an elastic fiber mesh fabric (color: red)
*Impact Resistance: Capable of withstanding an impact force of 7000 kg at a forklift speed of 3 km/h
*Operation Mode: Manual pull to close, automatic roll-up into the post box when released
*Automatic Retract System: Built-in coil spring and integrated barrel assembly
