Flexible Crash Barrier
Flexible Crash Barrier
———Ideal for special protection of forklifts and equipment.

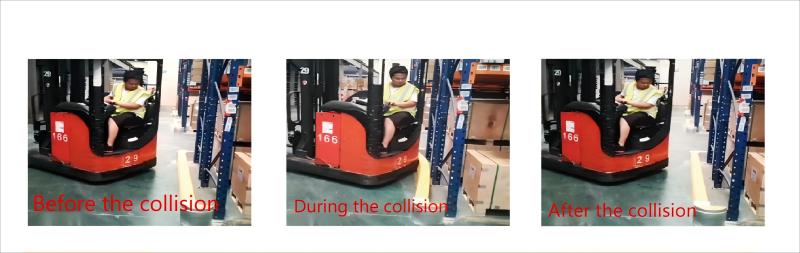

This is a specialized protection system designed for forklifts and equipment, creating safe zones for industrial vehicles and factory equipment to prevent impact damage. Featuring secondary buffer technology, it withstands various vehicle collisions and returns to its original shape afterward. The system can be customized to meet different length requirements.
● The eye-catching yellow color provides excellent visual warning;
● Customizable in length and curvature according to specific needs;
● Durable and maintenance-free.
| Component | Specification Description |
| Pipe Material | Made from European-imported high-molecular polymers as base material, modified with over a dozen internationally standardized eco-friendly additives including high-toughness polymers, antioxidants, UV absorbers, light stabilizers, antistatic agents, nucleating agents, and scratch-resistant agents. |
| Base | Assembled from multiple materials such as metal and rubber. Exposed metal surfaces are treated with black powder coating and withstand 500 hours of neutral salt spray testing without rusting. |
| Floor Connection | Features uniquely customized rigid insert bolts with Dacromet surface treatment, enduring 1,000 hours of neutral salt spray testing without rusting. |
| Color | Signal Orange RAL 1003. |

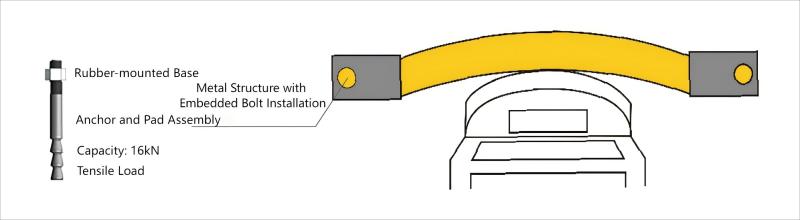

It utilizes uniquely customized rebar adhesive and specially designed 10.9-grade anchor bolts capable of withstanding maximum tensile loads of 16 kN.
| Product Model | End Fitting Specification | Rail Specification | Impact Absorption (45°) | Impact Absorption (90°) |
| LDDL-90 | Plastic end caps, fixed with two 20mm diameter stainless steel bars | Single rail outer diameter: 90mm, Wall thickness: 10mm, Length: Customizable | Withstands impact from 2.0-ton vehicle at 4 km/h | Withstands impact from 2.0-ton vehicle at 3 km/h |
| LDDL-Air | Plastic end caps, fixed with two sets of built-in M20 bolts | Rail height: 180mm, Width: 80mm, Wall thickness: 10mm-11mm, Length: Customizable | Withstands impact from 2.0-ton vehicle at 5 km/h | Withstands impact from 2.0-ton vehicle at 4 km/h |
| LDDL-Pro | Carbon steel powder-coated end fitting (Dual-bolt fixation), Length: 215mm, Height: 100mm, Wall thickness: 6mm | Rail height: 180mm, Width: 80mm, Wall thickness: 10mm-11mm, Length: Customizable | Withstands impact from 3.0-ton vehicle at 6 km/h | Withstands impact from 3.0-ton vehicle at 5 km/h |
| LDDL-Ultra | Carbon steel powder-coated end fitting (Single-bolt fixation), Length: 165mm, Height: 100mm, Wall thickness: 6mm | Rail height: 180mm, Width: 80mm, Wall thickness: 10mm-11mm, Length: Customizable | Withstands impact from 3.0-ton vehicle at 6 km/h | Withstands impact from 3.0-ton vehicle at 5 km/h |
| LDDL-50200 | Plastic end caps, fixed with two sets of built-in steel bars | Rail height: 200mm, Width: 50mm, Wall thickness: 8mm, Length: Customizable |
